How to Install a Car MP5 Player with Camera Step by Step

Installing a car MP5 player with a camera offers numerous benefits. This upgrade enhances safety by providing real-time footage during accidents. Dash cameras reduce crash-for-cash incidents by 22%. These devices offer crucial evidence for insurance claims. The convenience of a car MP5 player camera installation includes Bluetooth capabilities for wireless audio streaming. Hands-free calls become possible, improving driving focus. This installation empowers drivers with advanced technology, making every journey safer and more enjoyable.

Tools and Materials Needed

Image Source: pexels

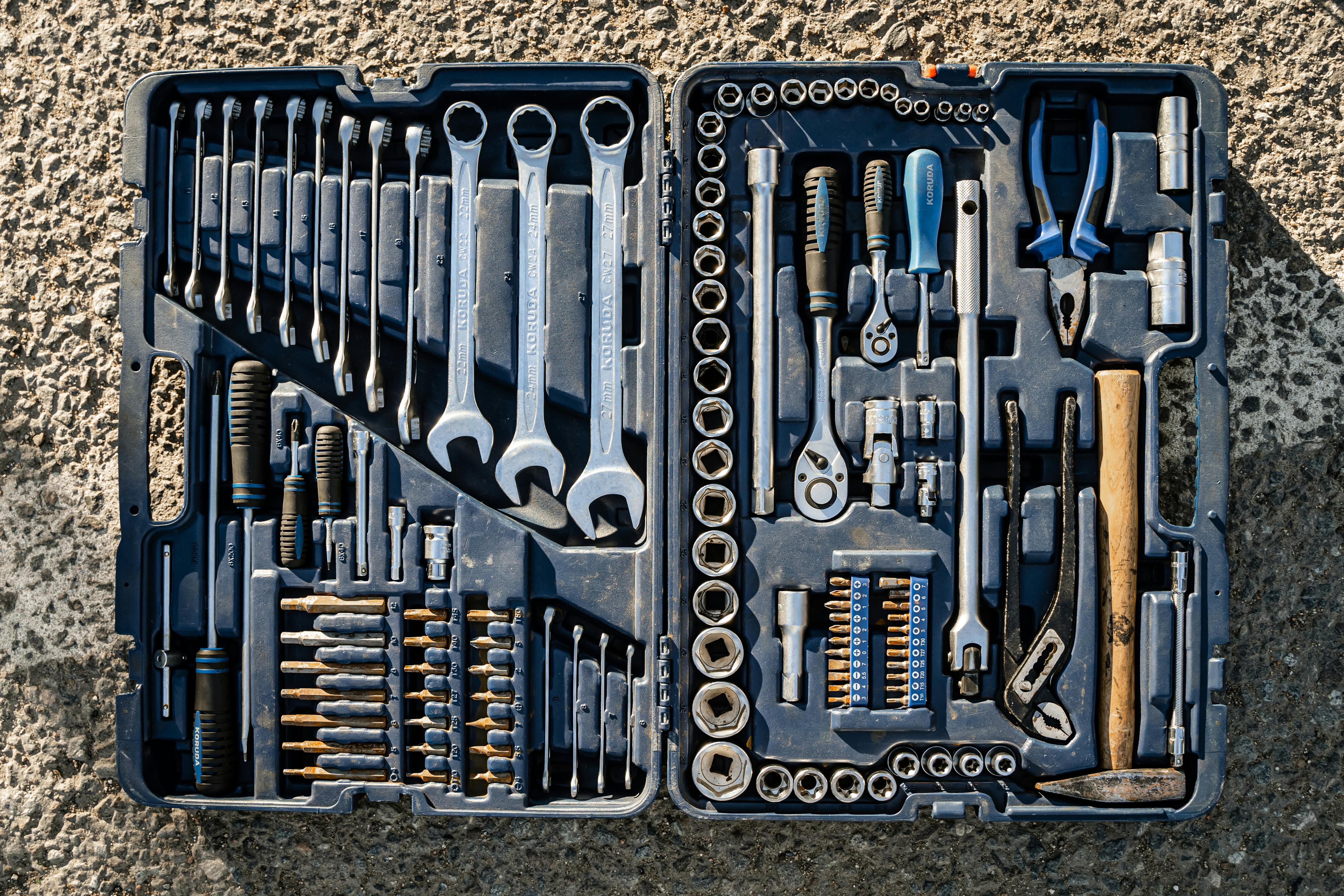

Essential Tools

Screwdrivers

Screwdrivers are vital for installing a car MP5 player with a camera. Use screwdrivers to remove screws from the dashboard and other panels. Choose the right size to avoid damaging the screws or the surrounding area.

Wire Strippers

Wire strippers help you prepare wires for connection. Use wire strippers to remove insulation from the ends of wires. This tool ensures a clean and precise cut, which is essential for secure connections.

Electrical Tape

Electrical tape insulates and secures wire connections. Wrap electrical tape around exposed wires to prevent short circuits. This tape also adds an extra layer of protection against moisture and corrosion.

Required Materials

Wiring Harness

A wiring harness connects the MP5 player to your car's electrical system. The harness simplifies the installation process by matching wires to their corresponding functions. Ensure compatibility with your vehicle model for a seamless fit.

Mounting Kit

A mounting kit provides the necessary components to secure the MP5 player in place. The kit may include brackets, screws, and adhesive pads. Follow the manufacturer's instructions for a stable and secure installation.

Camera

The camera enhances safety by providing real-time footage while driving. Choose a camera that offers high resolution and a wide field of view. Install the camera in a location that provides optimal visibility without obstructing the driver's view.

Car MP5 Player Camera Installation: Removing the Factory Radio

Disconnecting the Battery

Safety plays a crucial role in car mp5 player camera installation. Disconnect the car battery before starting the process. This step prevents electrical shocks and protects the vehicle's electrical system. Use a wrench to loosen the nut on the negative terminal. Remove the cable from the terminal and secure it away from the battery.

Removing the Dashboard Panel

The dashboard panel must be removed for car mp5 player camera installation. Locate screws and clips that hold the panel in place. Use a screwdriver to remove screws carefully. Pry the panel gently using a trim removal tool. Avoid using excessive force to prevent damage to the panel or clips.

Detaching the Factory Radio

Detaching the factory radio is an essential step in car mp5 player camera installation. Identify the connectors attached to the radio. Unplug each connector by pressing the release tab. Pull the connectors gently to avoid damaging the wires. Remove the radio unit from the dashboard once all connectors are detached.

Car MP5 Player Camera Installation: Connecting the Wiring Harness

Identifying Wires

Power and Ground Wires

Locate the power and ground wires in the wiring harness. The power wire usually has a red color. The ground wire often appears black. Use a multimeter to verify the voltage of the power wire. Ensure that the ground wire connects to a metal part of the car chassis.

Speaker Wires

Identify the speaker wires in the harness. Speaker wires typically come in pairs. Each pair consists of a positive and a negative wire. The positive wire often has a solid color. The negative wire may have a stripe. Match each pair with the corresponding speaker location in the vehicle.

Connecting the Harness

Matching Wire Colors

Match the wire colors from the car's wiring harness to the MP5 player's harness. Align the red power wire with the corresponding wire on the player. Connect the black ground wire to the player's ground wire. Ensure that each speaker wire pair matches the colors on the player.

Securing Connections

Secure each connection using crimp connectors or soldering. Crimp connectors provide a quick and reliable connection. Soldering offers a more permanent solution. Wrap each connection with electrical tape for insulation. Ensure that no bare wires remain exposed. Test each connection with a multimeter to confirm proper functionality.

Mounting the Camera

Image Source: pexels

Choosing the Location

Selecting the right location for the camera is crucial in car mp5 player camera installation. Place the camera near the center of the vehicle's rear. This position provides optimal visibility. Ensure that the camera does not obstruct the driver's view. A central location offers a balanced field of view, enhancing safety during reversing.

Running the Wires

Proper wire routing ensures a clean and functional setup. Begin by identifying a path from the camera to the MP5 player. Avoid sharp edges and moving parts that may damage the wires. Use cable ties to secure the wires along the chosen path. This method prevents tangling and interference with other vehicle components. Proper routing maintains the integrity of the installation.

Connecting to a 12-Volt Source

Connecting the camera to a 12-volt power source is essential. Locate a power source that activates when the vehicle is in reverse. The reverse light circuit often serves as an ideal option. Use a multimeter to verify the voltage of the chosen source. Connect the camera's power wire to this source using crimp connectors. This connection ensures that the camera activates only when needed, preserving battery life.

Troubleshooting Common Issues

No Power to the Player

Checking Connections

Ensure all connections are secure during the car MP5 player camera installation. Inspect the wiring harness for loose or disconnected wires. Use a multimeter to verify power at the connection points. Check the vehicle's fuse box for any blown fuses related to the audio system. Replace any faulty fuses with ones of the same rating. Confirm that the battery is reconnected properly after installation.

Camera Not Displaying

Verifying Camera Connections

Examine the camera connections if the display is not working. Ensure the camera's power wire connects to a 12-volt source that activates in reverse. Verify the video cable is securely connected to both the camera and the player. Inspect the camera lens for obstructions or damage. Adjust the camera angle to ensure a clear view. Test the camera by placing the vehicle in reverse and observing the display.

You have completed the car MP5 player camera installation. Review each step to ensure everything functions properly. Explore additional resources like online tutorials for more guidance. A car MP5 player with a camera enhances driving safety and convenience. Embrace the benefits of modern technology in your vehicle. Attempting this DIY project boosts your skills and confidence.
